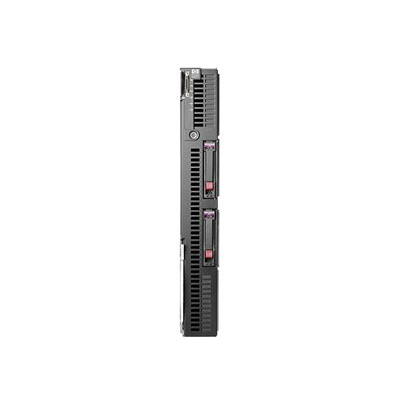

HPE ProLiant BL685c G7 blade – Opteron 6276 2.3 GHz – 64 GB – 0 GB

6,757.00 $

Featuring the AMD Opteron processors and integrated HP Virtual Connect FlexFabric architecture, the BL685c helps simplify network connections, lower infrastructure costs, and delivers cost-effective, scalable, dense four-processor performance for virtualization and compute-intensive database applications.

in stock

SKU: 654799-B21 Category:

Description

HPE ProLiant BL685c G7 – blade – Opteron 6276 2.3 GHz – 64 GB – 0 GB
Type Server – blade
Server Scalability 4-way
Processor 4 x AMD Opteron 6276 / 2.3 GHz (3.2 GHz) (16-core)
Cache Memory 64 MB L3 Cache
Cache Per Processor 16 MB
RAM 64 GB (installed) / 256 GB (max) – DDR3 SDRAM – Advanced ECC – PC3-10600
Storage Controller RAID (SATA 3Gb/s / SAS 6Gb/s) – PCIe 2.0 x4 (Smart Array P410i with 1GB FBWC)
Server Storage Bays Hot-swap 2.5"
Hard Drive No HDD
Graphics Controller ATI ES1000
Networking GigE, 10 GigE
Dimensions (WxDxH) 5.56 cm x 51 cm x 36.6 cm
Weight 8.7 kg
General
Hot-Swap Bays Qty 2
Product Form Factor Blade
Server Scalability 4-way
Type Server
Cache Memory
Cache Per Processor 16 MB
Installed Size L3 Cache – 64 MB
Dimensions & Weight
Depth 51 cm
Height 36.6 cm
Weight 8.7 kg
Width 5.56 cm
Environmental Parameters
Humidity Range Operating 10 – 90% (non-condensing)
Max Operating Temperature 35 °C
Min Operating Temperature 10 °C
Expansion / Connectivity
Bays 2 (total) / 2 (free) x hot-swap 2.5″ SFF
Interfaces 1 x HP iLO ¦ 4 x LAN (10Gigabit Ethernet) ¦ 1 x display / video ¦ 1 x USB 2.0 (1 internal)
Slots 4 (total) / 0 (free) x CPU ¦ 32 (total) / 16 (free) x DIMM 240-pin ¦ 3 (total) / 3 (free) x expansion slot ¦ 1 (total) / 1 (free) x microSDHC Card
Graphics Controller
Graphics Processor ATI ES1000
Type Integrated
Hard Drive
Type No HDD
Miscellaneous
Compliant Standards ACPI 2.0, WEEE
Features Administrator password, power-on password, keyboard password, USB port control
Monitor
Monitor Type None.
Networking
Compliant Standards IEEE 802.1Q, IEEE 802.1p, IEEE 802.3x, IEEE 802.3ad (LACP), IEEE 802.3ap
Data Link Protocol Gigabit Ethernet, 10 Gigabit Ethernet
Ethernet Controller 2 x HP NC551i
Ethernet Ports 4 x 10 Gigabit Ethernet
Features Wake on LAN (WoL)
Interface (Bus) Type PCI Express 2.0 x8
Remote Management Controller Integrated Lights-Out 3
Remote Management Protocol SNMP, IPMI 2.0, SMASH CLP
Type Integrated
Operating System / Software
OS Certified SUSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux, Oracle Solaris
Processor / Chipset
64-bit Computing Yes
CPU AMD Opteron 6276 / 2.3 GHz
CPU Qty 4
Chipset Type AMD SR5690/SP5100
L2 cache 8 x 2 MB
Max CPU Qty 4
Max Turbo Speed 3.2 GHz
Number of Cores 16-core
RAM
Configuration Features 16 x 4 GB
Effective Memory Speed 1333 MHz
Features Registered
Form Factor DIMM 240-pin
Installed Size 64 GB / 256 GB (max)
Memory Specification Compliance PC3-10600
RAM Supported PC3-10600 – 256 GB registered – Advanced ECC ¦ PC3-8500 – 1 TB registered – Advanced ECC
Rated Memory Speed 1333 MHz
Technology DDR3 SDRAM – Advanced ECC
Storage Controller
Buffer Size 1 GB
Controller Interface Type SATA 3Gb/s / SAS 6Gb/s
RAID Level RAID 0, RAID 1
Storage Controller Name Smart Array P410i with 1GB FBWC
Type 1 x RAID – PCIe 2.0 x4
