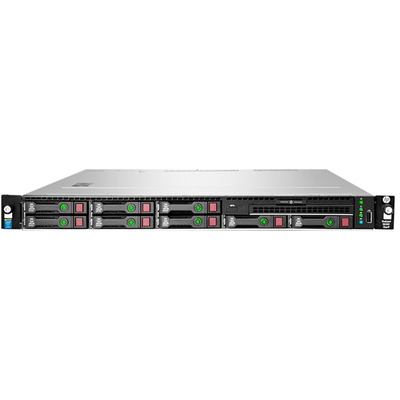

HPE ProLiant DL160 Gen9 Entry rack-mountable – Xeon E5-2603V4 1.7 GHz – 8 GB – 0 GB
1,577.06 $
Do you need a server with essential features for your IT environment, which is constrained by budget, space or IT resources? The HP ProLiant DL160 Gen9 delivers the right balance of performance, storage, reliability, manageability and efficiency in a dense and compact chassis, to meet the needs of a diverse set of customers – from SMBs to service providers with a wide range of deployments – from general purpose IT infrastructure to the emerging deployments like cloud and big data in distributed computing environments.
in stock
Description
| HPE ProLiant DL160 Gen9 Entry – rack-mountable – Xeon E5-2603V4 1.7 GHz – 8 GB – 0 GB | |
|---|---|
| Type | Server – rack-mountable |
| Height (Rack Units) | 1U |
| Localisation | Worldwide |
| Server Scalability | 2-way |
| Processor | 1 x Intel Xeon E5-2603V4 / 1.7 GHz (6-core) |
| Cache Memory | 15 MB L3 Cache |
| Cache Per Processor | 15 MB |
| RAM | 8 GB (installed) / 1 TB (max) – DDR4 SDRAM – Advanced ECC – PC4-19200 |
| Storage Controller | RAID (SATA 6Gb/s / SAS) (HP H240 Smart Host Bus Adapter) |
| Server Storage Bays | Hot-swap 2.5" |
| Hard Drive | No HDD |
| Graphics Controller | Matrox G200eH2 |
| Networking | GigE |
| Power | AC 120/230 V (50/60 Hz) |
| Dimensions (WxDxH) | 43.46 cm x 60.76 cm x 4.29 cm |
| Weight | 10 kg |
| Manufacturer Warranty | 3 years warranty – on-site (1st year only) |
| General | |
| Embedded Security | Trusted Platform Module (TPM 1.2) Security Chip |
| Hot-Swap Bays Qty | 8 |
| Localisation | Worldwide |
| Product Form Factor | Rack-mountable – 1U |
| Server Scalability | 2-way |
| Type | Server |
| Cache Memory | |
| Cache Per Processor | 15 MB |
| Installed Size | L3 Cache – 15 MB |
| Dimensions & Weight | |
| Depth | 60.76 cm |
| Height | 4.29 cm |
| Weight | 10 kg |
| Width | 43.46 cm |
| Environmental Parameters | |
| Humidity Range Operating | 8 – 90% (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 10 °C |
| Sound Emission | 34.2 dBA |
| Expansion / Connectivity | |
| Bays | 1 (total) / 1 (free) x external 5.25″ Slim Line ¦ 8 (total) / 8 (free) x hot-swap 2.5″ |
| Interfaces | 2 x LAN (Gigabit Ethernet) – RJ-45 ¦ 1 x HP iLO – RJ-45 ¦ 1 x VGA ¦ 1 x USB 2.0 (1 in front) ¦ 3 x USB 3.0 (2 rear, 1 internal) |
| Slots | 2 (total) / 1 (free) x CPU ¦ 16 (total) / 15 (free) x DIMM 288-pin ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 – half-length, full-height ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 – low-profile ¦ 1 (total) / 1 (free) x microSD Card (internal) |
| Graphics Controller | |
| Graphics Processor | Matrox G200eH2 |
| Video Interfaces | VGA |
| Hard Drive | |
| Type | No HDD |
| Manufacturer Warranty | |
| Service & Support | Limited warranty – parts – 3 years ¦ Limited warranty – labour – 1 year – on-site – response time: next business day |
| Miscellaneous | |
| Compliant Standards | ACPI 2.0b, FCC Class A certified, EN 61000-3-2, EN55022, ICES-003, EN 61000-3-3, EN55024, CISPR 22, FCC CFR47 Part 15, IEC 60950-1, EN 60950-1, WEEE, GB 9254, CNS 13438 |
| Included Accessories | HPE Easy Install Rails |
| Monitor | |
| Monitor Type | None. |
| Networking | |
| Compliant Standards | IEEE 802.3, IEEE 802.3u, IEEE 802.3ab, IEEE 802.1as, IEEE 802.3az |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet Controller | HP NC361i |
| Ethernet Ports | 2 x Gigabit Ethernet |
| Features | Wake on LAN (WoL), PXE support |
| Interface (Bus) Type | PCI Express 2.0 x2 |
| Remote Management Controller | Integrated Lights Out Management (ILOM) |
| Operating System / Software | |
| OS Certified | SUSE Linux Enterprise Server, Microsoft Windows Server, Red Hat Enterprise Linux, Oracle Solaris |
| Power | |
| Device Type | Power supply |
| Efficiency | 89% |
| Nominal Voltage | AC 120/230 V (50/60 Hz) |
| Power Provided | 550 Watt |
| Processor / Chipset | |
| CPU | Intel Xeon E5-2603V4 / 1.7 GHz |
| CPU Qty | 1 |
| CPU Upgradability | Upgradable |
| Max CPU Qty | 2 |
| Number of Cores | 6-core |
| RAM | |
| Configuration Features | 1 x 8 GB |
| Effective Memory Speed | 1866 MHz |
| Features | Registered, HP SmartMemory |
| Form Factor | DIMM 288-pin |
| Installed Size | 8 GB / 1 TB (max) |
| Memory Specification Compliance | PC4-19200 |
| RAM Supported | PC4-17000 – 512 GB registered ¦ PC4-19200 – 1 TB Load-Reduced |
| Rated Memory Speed | 2400 MHz |
| Technology | DDR4 SDRAM – Advanced ECC |
| Storage Controller | |
| Channel Qty | 8 |
| Controller Interface Type | SATA 6Gb/s / SAS |
| RAID Level | RAID 0, RAID 1, RAID 5 |
| Storage Controller Name | HP H240 Smart Host Bus Adapter |
| Type | 1 x RAID |
