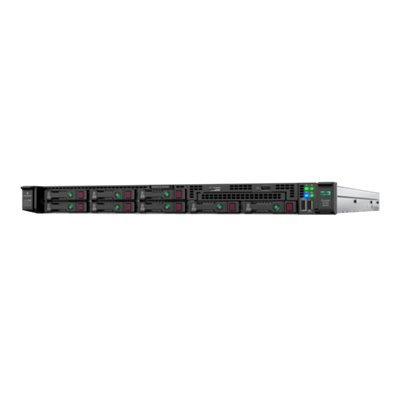

HPE ProLiant DL360 Gen10 Base rack-mountable – Xeon Silver 4114 2.2 GHz – 16 GB – 0 GB
3,011.12 $
The HPE ProLiant DL360 Gen10 server delivers security, agility and flexibility without compromise. Deploy, update, monitor and maintain with ease.
in stock
Description
| HPE ProLiant DL360 Gen10 Base – rack-mountable – Xeon Silver 4114 2.2 GHz – 16 GB – 0 GB | |
|---|---|
| Type | Server – rack-mountable |
| Height (Rack Units) | 1U |
| Localisation | Worldwide |
| Server Scalability | 2-way |
| Processor | 1 x Intel Xeon Silver 4114 / 2.2 GHz (10-core) |
| Processor Socket | Socket P |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology |
| Cache Memory | 13.75 MB L3 Cache |
| Cache Per Processor | 13.75 MB |
| RAM | 16 GB (installed) / 384 GB (max) – DDR4 SDRAM – PC4-20800 |
| Storage Controller | RAID (SATA 6Gb/s / SAS 12Gb/s) (HPE Smart Array P408i-a); SATA (SATA 6Gb/s) (HPE Smart Array S100i SR Software) |
| Server Storage Bays | Hot-swap 2.5" |
| Hard Drive | No HDD |
| Card Reader | Yes |
| Video Memory | 16 MB |
| Networking | GigE |
| Power | AC 120/230 V (50/60 Hz) |
| Power Redundancy | Optional |
| Dimensions (WxDxH) | 43.46 cm x 70.7 cm x 4.29 cm |
| Weight | 13.04 kg |
| Manufacturer Warranty | 3 years warranty – on-site |
| General | |
| Built-in Devices | Led panel, battery |
| Hot-Swap Bays Qty | 8 |
| Localisation | Worldwide |
| Product Form Factor | Rack-mountable – 1U |
| Server Scalability | 2-way |
| Type | Server |
| Cache Memory | |
| Cache Per Processor | 13.75 MB |
| Installed Size | L3 Cache – 13.75 MB |
| Card Reader | |
| Supported Flash Memory Cards | microSD |
| Type | Card reader |
| Dimensions & Weight | |
| Depth | 70.7 cm |
| Height | 4.29 cm |
| Weight | 13.04 kg |
| Width | 43.46 cm |
| Environmental Parameters | |
| Humidity Range Operating | 8 – 90% (non-condensing) |
| Max Operating Temperature | 35 °C |
| Min Operating Temperature | 10 °C |
| Sound Emission | 38.1 dBA |
| Expansion / Connectivity | |
| Bays | 1 (total) / 1 (free) x external ¦ 8 (total) / 8 (free) x hot-swap 2.5″ SFF |
| Interfaces | 1 x HP iLO – Type A (1 in front) ¦ 5 x USB 3.0 (1 front, 2 rear, 2 internal) ¦ 4 x LAN (Gigabit Ethernet) – RJ-45 (4 rear) ¦ 1 x HP iLO – RJ-45 (1 rear) ¦ 1 x VGA (1 rear) |
| Slots | 1 (total) / 1 (free) x FlexibleLOM – three-quarter-length, full-height (low-profile) ¦ 1 (total) / 1 (free) x PCIe 3.0 x16 – full-height ¦ 1 (total) / 1 (free) x PCIe 3.0 x8 (low-profile) ¦ 1 (total) / 1 (free) x microSD Card (internal) ¦ 2 (total) / 1 (free) x CPU ¦ 12 (total) / 11 (free) x DIMM 288-pin |
| Graphics Controller | |
| Video Interfaces | VGA |
| Video Memory | 16 MB |
| Hard Drive | |
| Type | No HDD |
| Manufacturer Warranty | |
| Service & Support | Limited warranty – parts and labour – 3 years – on-site – response time: next business day ¦ Technical support – software application support – 90 days |
| Miscellaneous | |
| Cables Included | Power cable |
| Compliant Standards | AES, FIPS 140-2, IPv6 Ready, PCI DSS, TLS v1.2, ASHRAE Class A4, ASHRAE Class A3, WEEE 2002/95/EC, ACPI 6.1 |
| Included Accessories | CPU standard heatsink, 5 x standard hot plug fans |
| Monitor | |
| Monitor Type | None. |
| Networking | |
| Data Link Protocol | Ethernet, Fast Ethernet, Gigabit Ethernet |
| Ethernet Ports | 4 x Gigabit Ethernet |
| Features | Wake on LAN (WoL), PXE support |
| Remote Management Controller | Integrated Lights-Out 5 |
| Remote Management Protocol | SNMP 3, IPMI 2.0, SMASH CLP |
| Operating System / Software | |
| OS Certified | CentOS, Microsoft Windows Server 2012 R2, VMware vSphere 6.0 (ESXi), SuSE Linux Enterprise Server 11 SP4, Microsoft Windows Server 2016, Red Hat Enterprise Linux 7.3, Red Hat Enterprise Linux 6.9, VMware vSphere 6.5 (ESXi), SuSE Linux Enterprise Server 12 SP2, ClearOS |
| Software | HPE Server UEFI |
| Power | |
| Device Type | Power supply – hot-plug |
| Installed Qty | 1 |
| Max Supported Qty | 2 |
| Nominal Voltage | AC 120/230 V (50/60 Hz) |
| Power Provided | 500 Watt |
| Power Redundancy | Optional |
| Power Redundancy Scheme | 1+1 (with optional power supply) |
| Processor / Chipset | |
| CPU | Intel Xeon Silver 4114 / 2.2 GHz |
| CPU Qty | 1 |
| CPU Socket | Socket P |
| CPU Upgradability | Upgradable |
| Chipset Type | Intel C621 |
| Max CPU Qty | 2 |
| Number of Cores | 10-core |
| Processor Main Features | Hyper-Threading Technology, Intel Turbo Boost Technology |
| RAM | |
| Configuration Features | 1 x 16 GB |
| Effective Memory Speed | 2400 MHz |
| Features | Registered, dual rank, slots 13 – 24 are available in two-processor configuration only |
| Form Factor | DIMM 288-pin |
| Installed Size | 16 GB / 384 GB (max) |
| Memory Specification Compliance | PC4-20800 |
| RAM Supported | PC4-20800 – 3.072 TB Load-Reduced ¦ PC4-20800 – 768 GB registered ¦ PC4-20800 – 192 GB Non-Volatile |
| Rated Memory Speed | 2666 MHz |
| Technology | DDR4 SDRAM |
| Storage Controller | |
| Buffer Size | 2 GB |
| Channel Qty | 8 |
| Controller Interface Type | SATA 6Gb/s / SAS 12Gb/s |
| RAID Level | RAID 0, RAID 1, RAID 5, RAID 6, RAID 10, RAID 50, RAID 60, RAID 1 ADM, RAID 10 ADM |
| Storage Controller Name | HPE Smart Array P408i-a |
| Type | 1 x RAID |
| Storage Controller (2nd) | |
| Channel Qty | 14 |
| Controller Interface Type | SATA 6Gb/s |
| Storage Controller Name | HPE Smart Array S100i SR Software |
| Type | 1 x SATA |
